Nilfisk
SR1601 Ride-On Industrial Sweeper

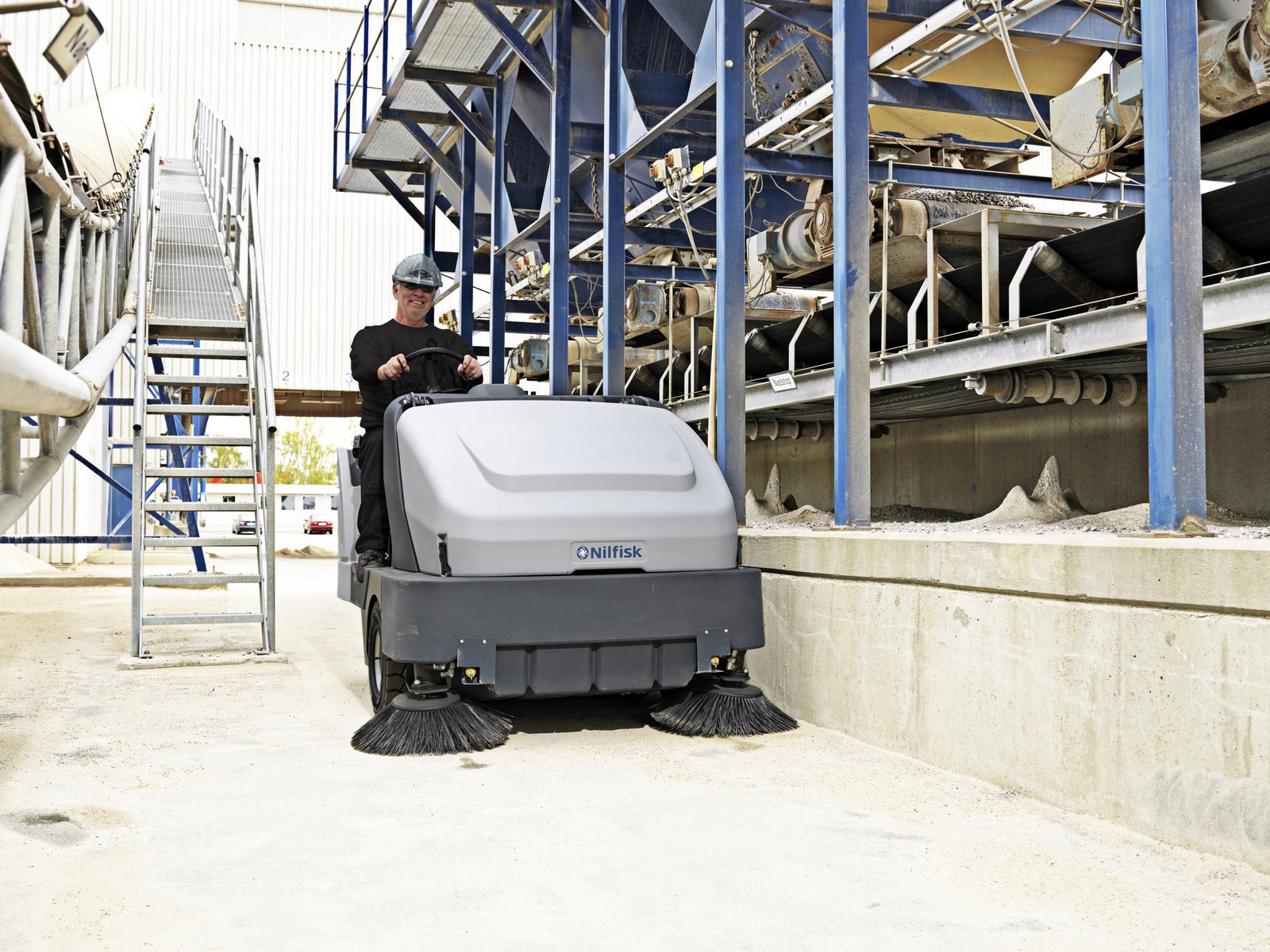

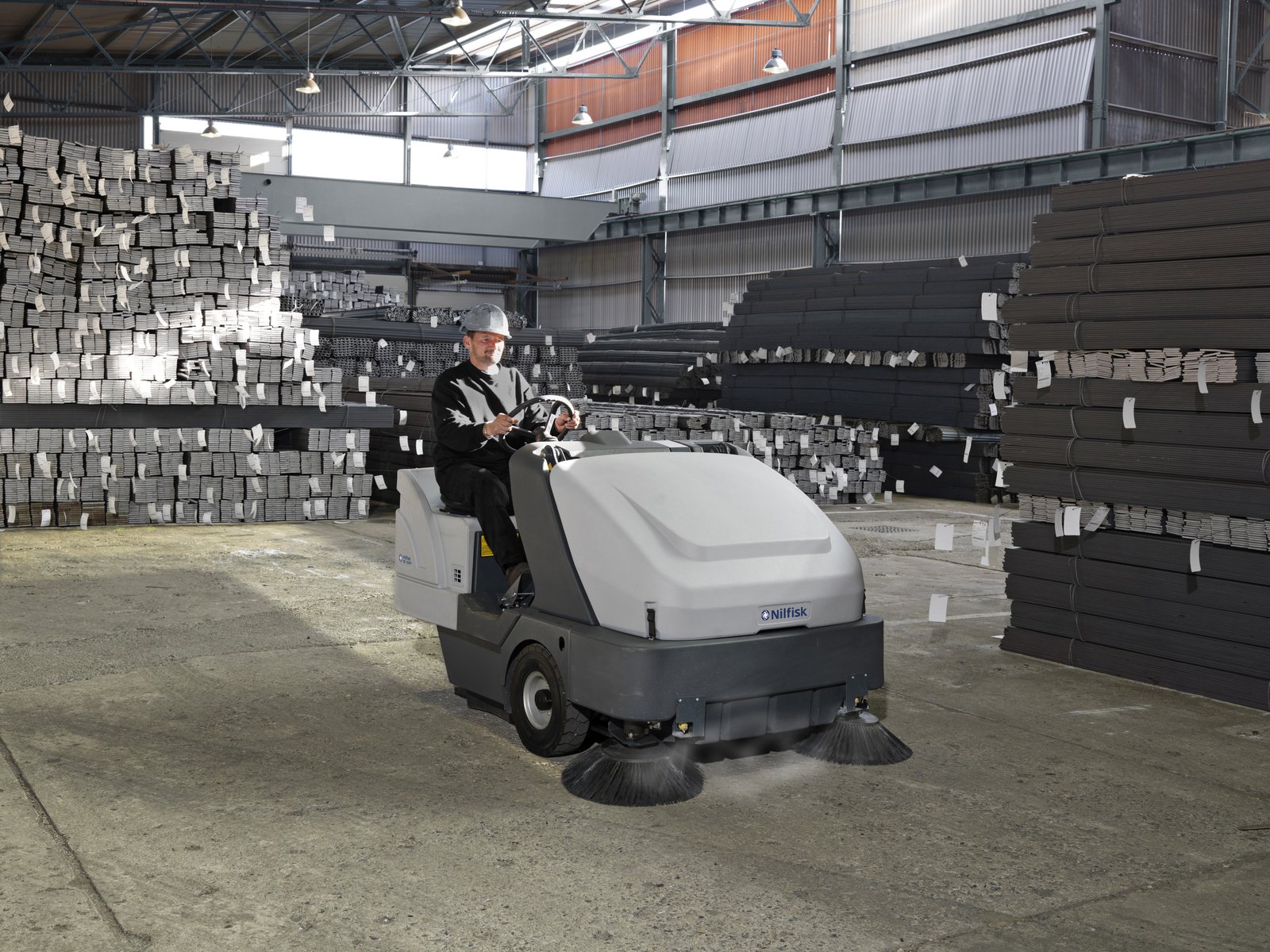

An industrial ride-on sweeper for manufacturing, construction, and logistics yards — the 315-litre hopper dumps at 1.59 metres straight into a skip, with a choice of diesel, LPG, or 48V battery to match the environment.
Power Source
Battery 48V / Diesel / LPG
Hopper Volume
315 L (high-dump 159 cm)
Cleaning Width
1,600 mm (with 2 side brushes)
Coverage
Up to 15,000 m²/h theoretical (diesel/LPG) · 10,000 m²/h (battery)
Why we recommend it
- A 315-litre hopper with 1.59 metre high-dump tips straight into a standard skip — one operator sweeps a factory floor or construction yard and empties without leaving the seat. No secondary handling, no manual lifting.
- DustGuard™ misting controls airborne dust at both front and side brushes. Less secondary cleaning of stock, surfaces, and equipment across the whole facility — the visible saving is on the floor, the hidden saving is everywhere else.

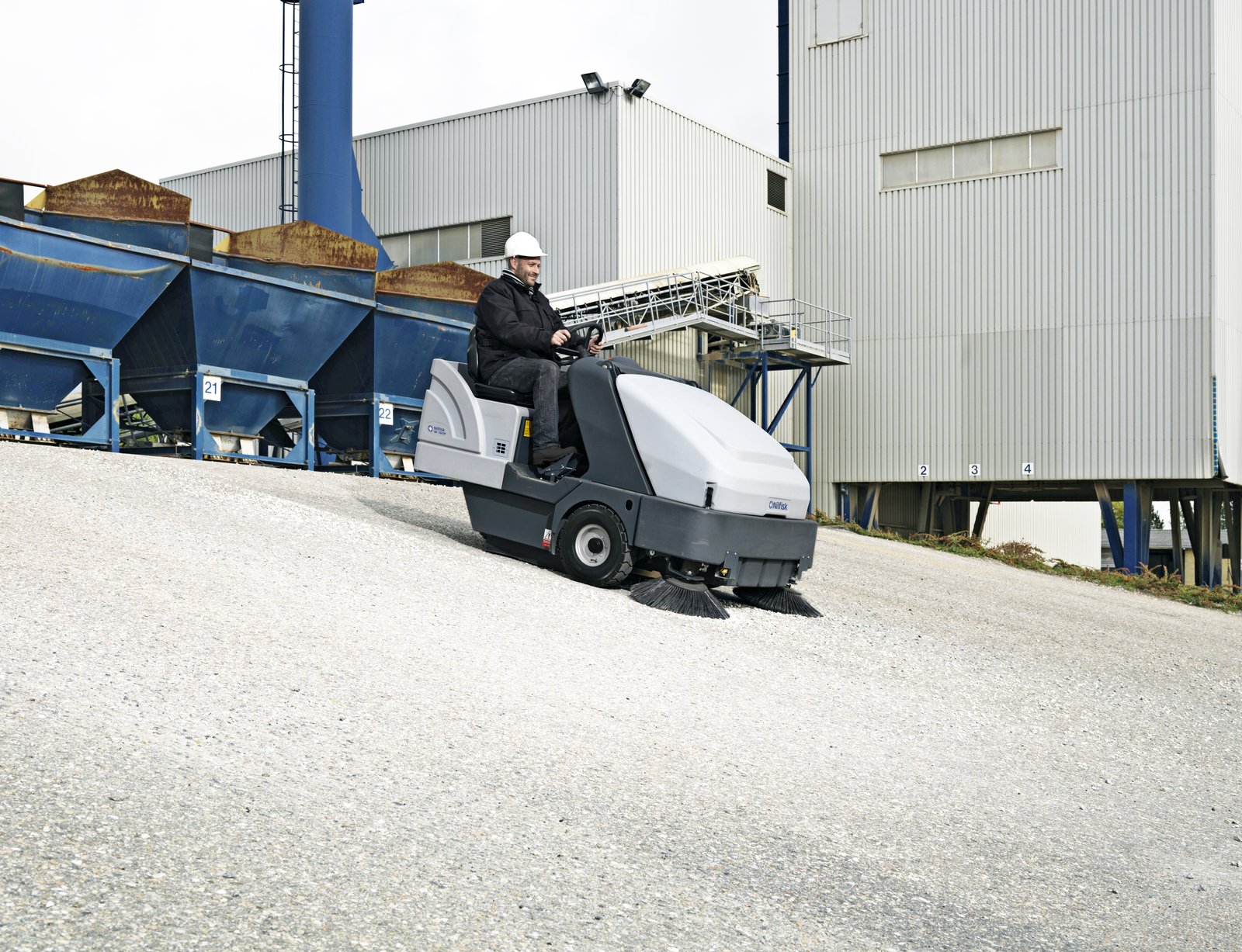

- Diesel, LPG, or 48V battery: diesel and LPG for outdoor yards and 25% ramp climbs, battery for indoor air quality. One chassis, three power options, same productivity footprint.
- Multispectrum™ filter shaker and MaxAccess™ tool-free service — built for reliability in demanding conditions, with fast component access when a machine being down means an operation being down.
/ 02
Full Specification
| Battery 48V | Diesel (3-cyl Kubota) | LPG (3-cyl Kubota) | |
|---|---|---|---|
| Configuration | Industrial ride-on, high-dump hopper, power steering standard | ||
| Motor Power | — | 16.3 kW / 22 HP | 20 kW / 26.8 HP |
| Engine Brand | — | Kubota | Kubota |
| Productivity — Theoretical / Actual | 10,000 / 7,000 m²/h | 15,000 / 10,500 m²/h | 15,000 / 10,500 m²/h |
| Max Travel Speed | 8 km/h | 12 km/h | 12 km/h |
| Working Width — Main broom | 900 mm | ||
| Working Width — 1 side brush | 1,250 mm | ||
| Working Width — 2 side brushes | 1,600 mm | ||
| Min Turning Aisle | 306 cm | ||
| Hopper Volume | 315 L | ||
| Max Dumping Height | 159 cm (high-dump, tips into skip) | ||
| Main Filter Area | 10 m² (Multispectrum™ filter shaker) | ||
| Dimensions (L×W×H) | 222 × 132 × 146 cm | ||
| Weight | 1,220 kg | 945 / 980 kg (base / MAXI) | 945 / 980 kg (base / MAXI) |
| Ramp Climb | Up to 25% | ||
| MAXI Option | Adds left side brush, adjustable steering, and pre-misting as standard | ||
| Key Technology | DustGuard™ misting · Multispectrum™ filter shaker · MaxAccess™ tool-free service · power steering (standard) · rotomoulded polyethylene covers over steel chassis | ||
Source verification
Sourced direct from the manufacturer: Nilfisk SR 1601 brochure (ref 96026006-01/16).
