Nilfisk
SW4000 Ride-On Sweeper

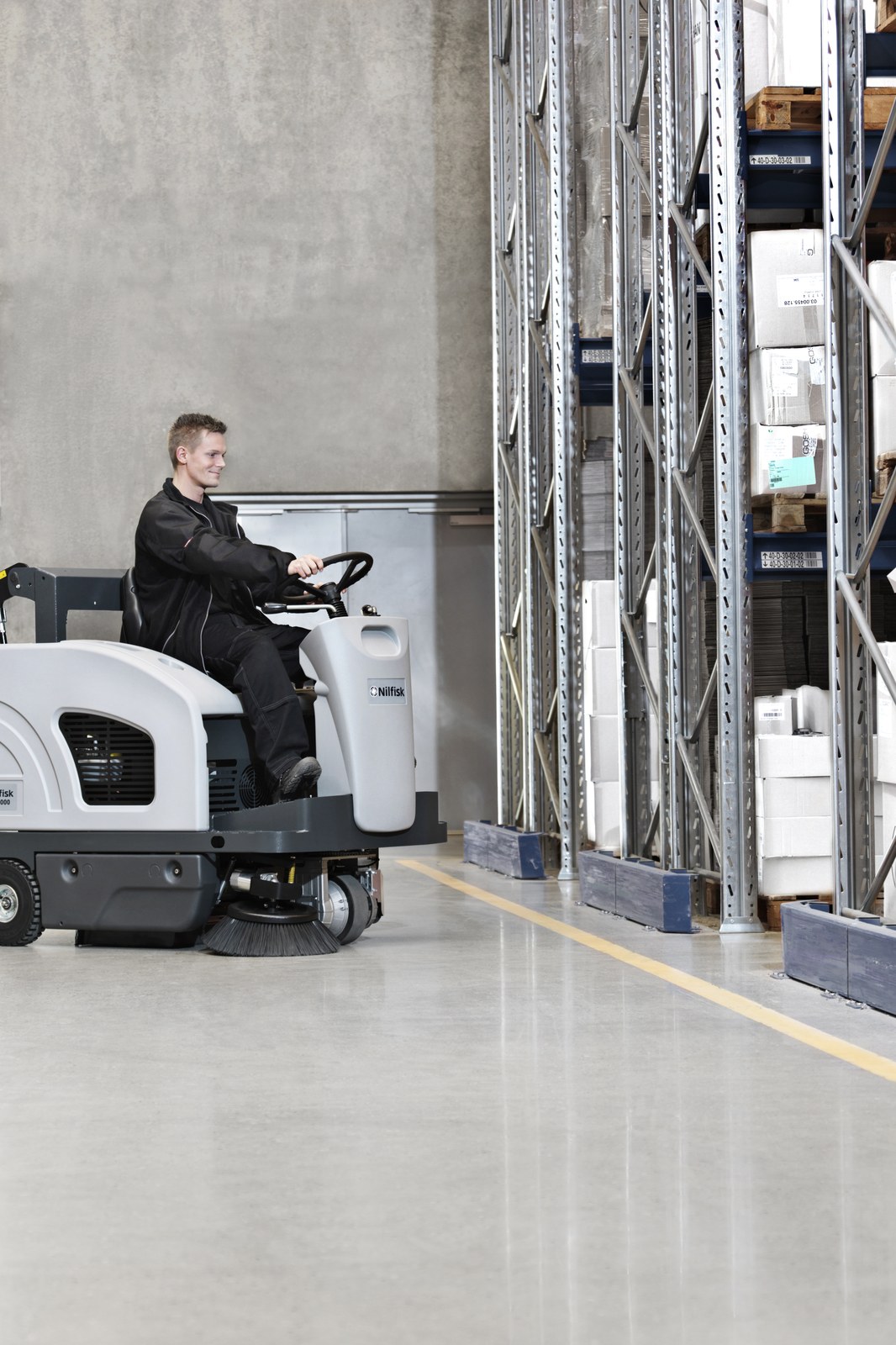

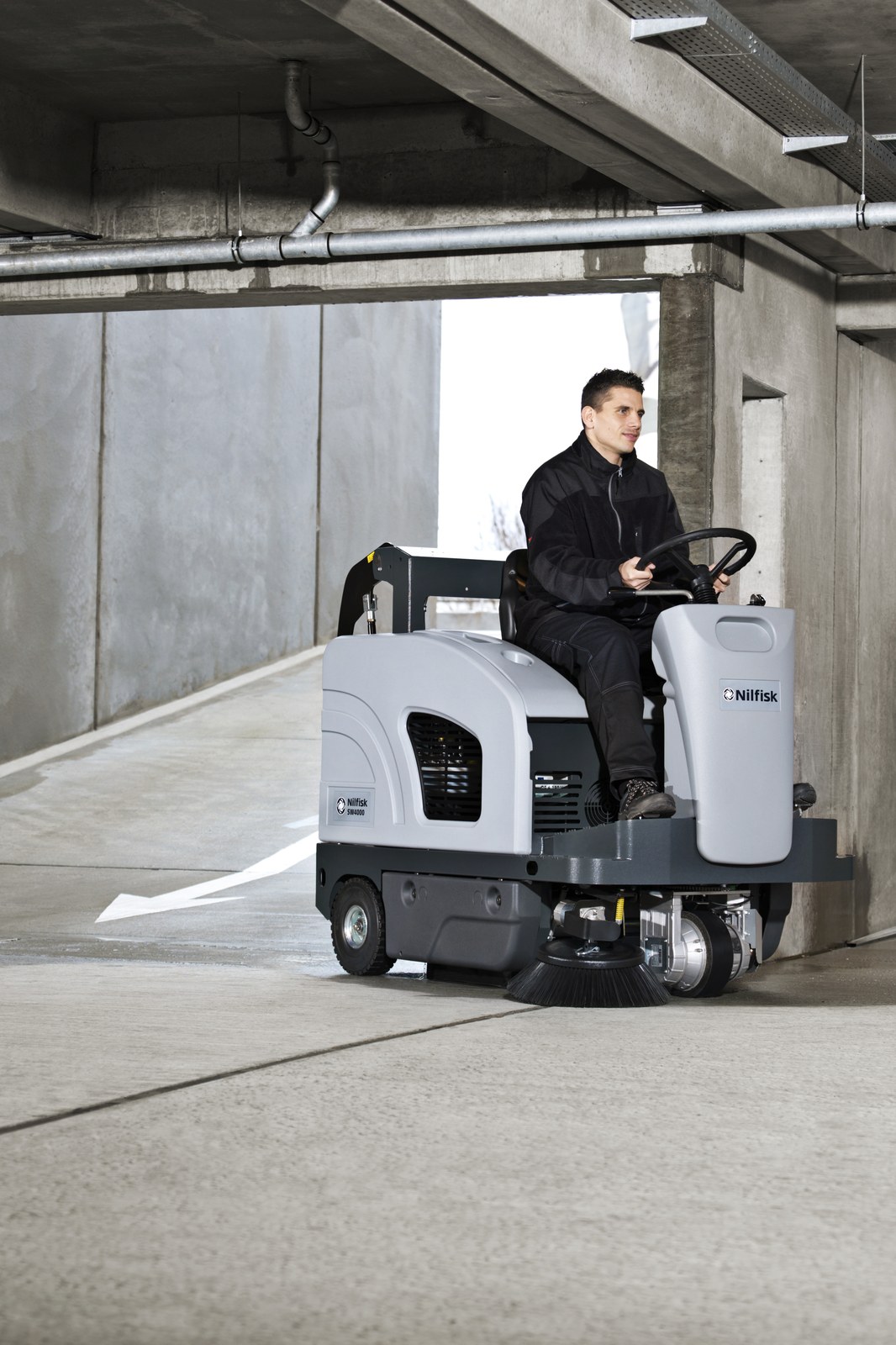

A ride-on sweeper with high-dump for warehouses, distribution centres, and multi-storey car parks — one-touch sweeping activates the main broom, side brooms, vacuum, and misting in a single action and stops them when you stop driving.
Power Source
Battery 24V / Petrol / LPG
Hopper Volume
100 L (high-dump 150 cm)
Cleaning Width
1,250 mm (with 2 side brooms)
Coverage
8,750 m²/h theoretical · 6,125 m²/h actual
Why we recommend it
- One Touch Sweeping activates the main broom, both side brooms, the vacuum fan, and optional DustGuard™ misting in a single action — and stops them all when you stop driving. Less wear, less drain, less for the operator to remember.
- Retractable spring-loaded side brooms spring away on impact instead of snapping — sweep close to racking legs, walls, and shelving without breakage or damage to your own stock.

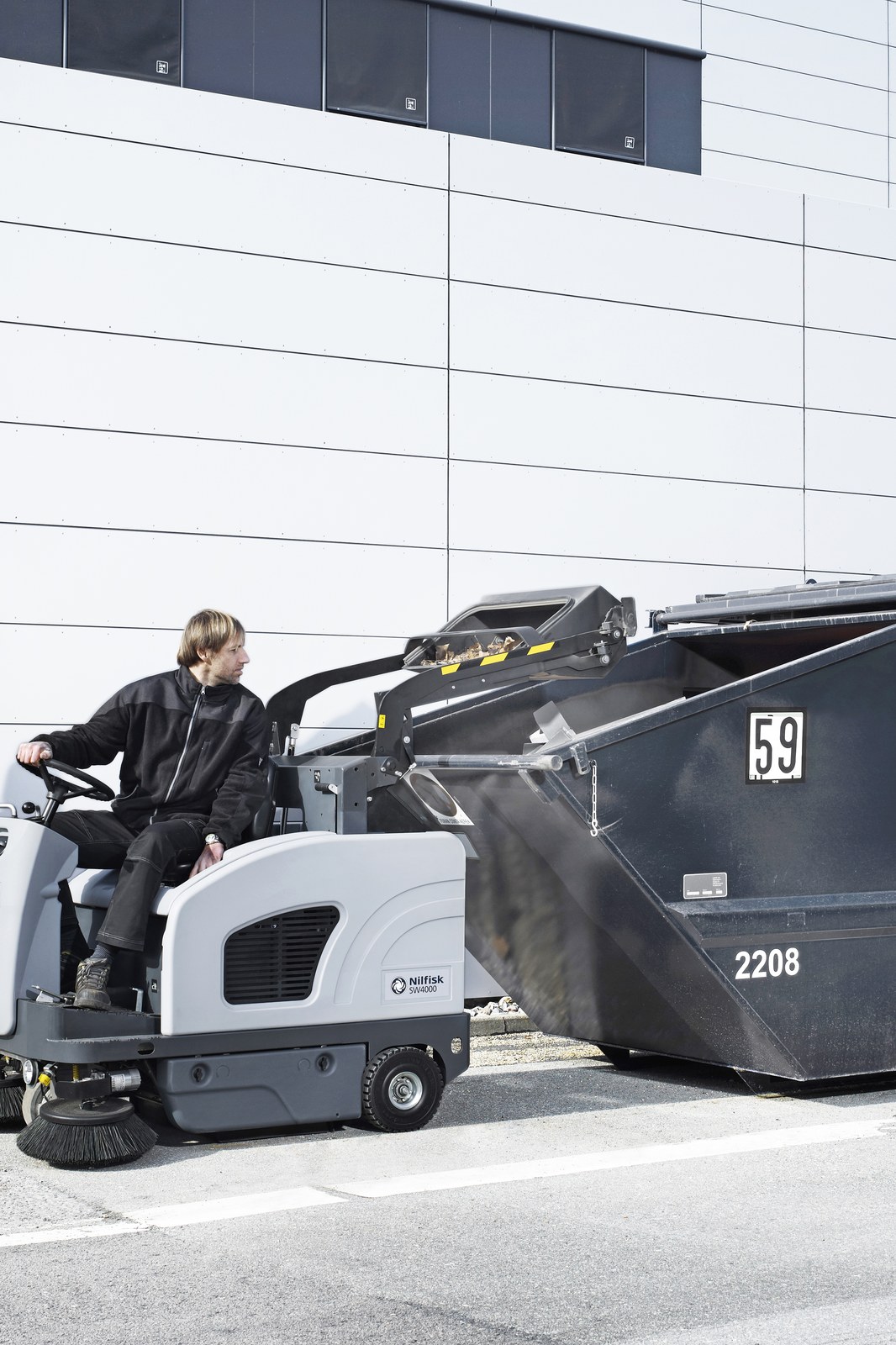

- A 150 cm high-dump hopper tips straight into a standard skip — no manual lifting, no second-machine transfer. One operator clears a distribution centre and empties without leaving the seat.
- Choice of battery (indoor, 65 dB(A)), petrol, or LPG (outdoor, higher duty cycle) — the same chassis and productivity specification, three fits for different environments.
/ 02
Full Specification
| Battery 24V | Petrol (Honda) | LPG (Honda) | |
|---|---|---|---|
| Configuration | Ride-on, high-dump hydraulic hopper, retractable side brooms | ||
| Motor Power | — | 4.1 kW (Honda GX200UT2 VSD9) | 4.1 kW (Honda GX200UT2 VSD9) |
| Sound Pressure | 65 dB(A) | 75 dB(A) | 75 dB(A) |
| Productivity — Theoretical / Actual (2 side brooms) | 8,750 / 6,125 m²/h | ||
| Working Width — Main broom / 1 side / 2 sides | 700 / 975 / 1,250 mm | ||
| Max Travel Speed | 7 km/h | ||
| Hopper Volume | 100 L | ||
| Max Dumping Height | 150 cm (high-dump, tips into standard skip) | ||
| Main Filter Area | 7 m² (UltraWeb™, paper or polyester) | ||
| Dimensions (L×W×H) | 164 × 103.5 × 133 cm | ||
| Net Weight | 433 kg | 511 kg | 515 kg |
| Item No. | 9084400010 | 9084401010 | 9084402010 |
| Key Technology | One Touch Sweeping · retractable spring-loaded side brooms · Liberator™ multi-frequency filter shaker · DustGuard™ misting (optional) · foam-filled wheels · tool-free broom and filter access | ||
Source verification
Sourced direct from the manufacturer: Nilfisk SW4000 brochure (ref 96030506-06/13).
